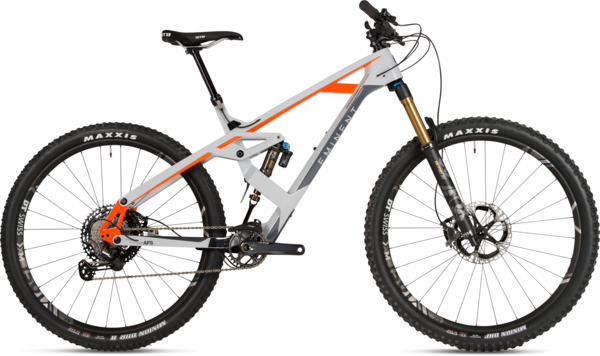

"Quiver killer", "Swiss Army Knife", "If I could only have one bike". We say this but "that bike" always comes up short somehow. We optimized our AFS suspension around an AM 29 inch platform and gave up nothing. The Onset 140 truly is the "have your cake, and eat it too, bike". So enjoy your cake... with a grin that your buddies are sure to get sick of.
Traction is the promise that a full suspension design strives to deliver:
The ability of two touch points (tires) to mirror the contours of the surface they roll on. To achieve traction is to deliver it constantly, under all circumstances, regardless of speed, size of terrain, incline, decline, acceleration, or deceleration.
A design’s ability interpret these nuances is encumbered by three competing functions: DESCENDING, PEDALING, AND BRAKING. Because they can be opposing functions, designs are inherently biased and therefore compromised, resulting in: brake jack, pedal bob, or a harsh descending experience.
As the name suggests, AFS “floats” the shock between two “active” points (seat stay & chain stay). This maintains shock alignment regardless of lateral forces, ultimately reducing shock bind. Additionally, by moving the “typical” pivot point to the end of the seat stay, more direct force transfer is achieved, due to the longer lever arm. Finally, AFS delivers an optimized leverage ratio that is both linear and progressive. This provides “coil-like” small bump sensitivity, while still providing support deeper into the travel.
Depending on the Eminent model, AFS delivers anti-squat values between 125% and 150% (lower/enduro & higher/all-mountain) delivering a powerful pedaling platform, which will still actively track. To further improve pedal efficiency, increased lateral stiffness is achieved by moving the seat stay pivot close to the axle and implementing angular contact bearings. This ensures the maximum return on every pedal stroke.
The engineer has worked hard, optimizing leverage curves, force transfer, and anti-squat qualities. One challenge remains: brake caliper placement. Typically options are limited to an active portion of the linkage. This yields brake induced suspension movement, ultimately a traction compromise. By employing an independently floating brake mount, AFS decouples suspension and brake forces (see video). This delivers a falling anti-rise value well below 100%, without any influence on the other optimized (descending and pedaling) characteristics of the design.
We don’t believe traction is a 2 out of 3 problem solution. The AFS is a fully realized, three part solution to a three part engineering problem, resulting in TRACTION under any circumstance. Constant traction equates to predictability, control, confidence, and ultimately speed… and speed = FUN.
Experience AFS and ride… fully realized.
|Fork||Fox 36 Factory 150mm|
|Rear Shock||Fox Float DPX2 Factory|
|Rims/Wheels||E13 LG EN Race Carbon (30mm)|
|Tires||Vittoria Mazza 2.6F Martello 2.4R Trail Casing|
|Crankset||Shimano XTR M9120 12-Speed|
|Chainwheel||Shimano XTR M9120 12-Speed|
|Bottom Bracket||Shimano XTR M9120|
|Chain||Shimano XTR M9120 12-Speed|
|Rear Derailleur||Shimano XTR M9120 12-Speed|
|Rear Cogs||Shimano XTR M9120 12-Speed|
|Shifters||Shimano XTR M9120 12-Speed|
|Handlebars||Pro Taper Carbon|
|Brake Levers||Shimano XTR Trail|
|Brakes||Shimano XTR Trail|
|Seat Post||KS Rage (Internal routing)|
|Seat Binder||Integrated Seat Binder|

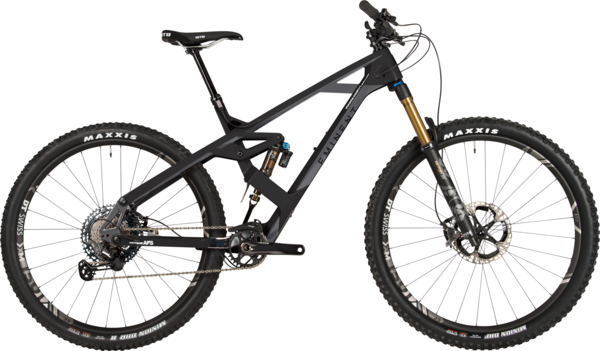

|Color(s)||Black / Gray, Gray / Orange, Blue / Gold|

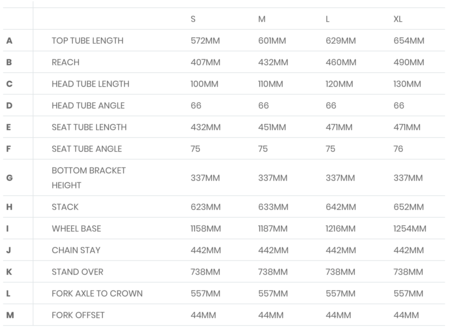

|Sizes||Small, Medium, Large, and X-Large|
* Subject to change without notice.
